Front view

https://www.analog.com/media/en/technical-documentation/data-sheets/ADF5355.pdf
https://f6kbf.free.fr/html/ADF5355%20and%20Arduino_Fr_Gb.xhtml
https://github.com/F1CJN/ADF5355-ARDUINO-LCDShield

Downloads:       Schematic   and   Sketch

Note: The sketch is updated (June, 2023) to version 1.5.
– Added stepsizes 10, 100 MHz and 1GHz
– MTLD set to 1 (Output muted when no lock)
– Add 100MHz ref. X-tal freq setting on request of Jac, PE1KXH
– Changed storage of X-tal freq by Ref pointer

Because I had to use the ADF4351 board for my new BATC Portsdown DATV project, I decided to rebuild the ADF4351 VFO with a ADF5355 module, bought from e-bay. I also replaced the PIC by an Arduino Nano. The software (sketch) is based on the design of F6KBF and F1CJN. I have replaced the push buttons in the design by two encoders and I have added a menu.

The frequency range is automatically split over two output SMA connectors: 54-6800 MHz and 6800-13600 MHz

The VFO is menu driven and has the following functions:
–  Selection of one of ten memory locations
–  Stepsize selection ( 1, 10, 100Hz, 1, 10 100 KHz and 1, 10, 100,1000 MHz)
–  Output power: -4, -1, +2, +5 dBm (strongly depended on selected frequency)
–  Reference input frequency 10, 25 or 100 MHz.

You can reach the menu functions by pressing the right encoder.

The last used frequency is automatic saved after 5 seconds of not tuning.

With the left encoder you can tune at 100 MHz steps, with the right one the selected stepsize. But you can select the different menu functions as well.

Builders information
The price of the board is much more expensive then before the corona pandemic. It increases from $66 to over $100 (on eBay)!!

Using the ADF5355 module it’s very easy to build the VFO.

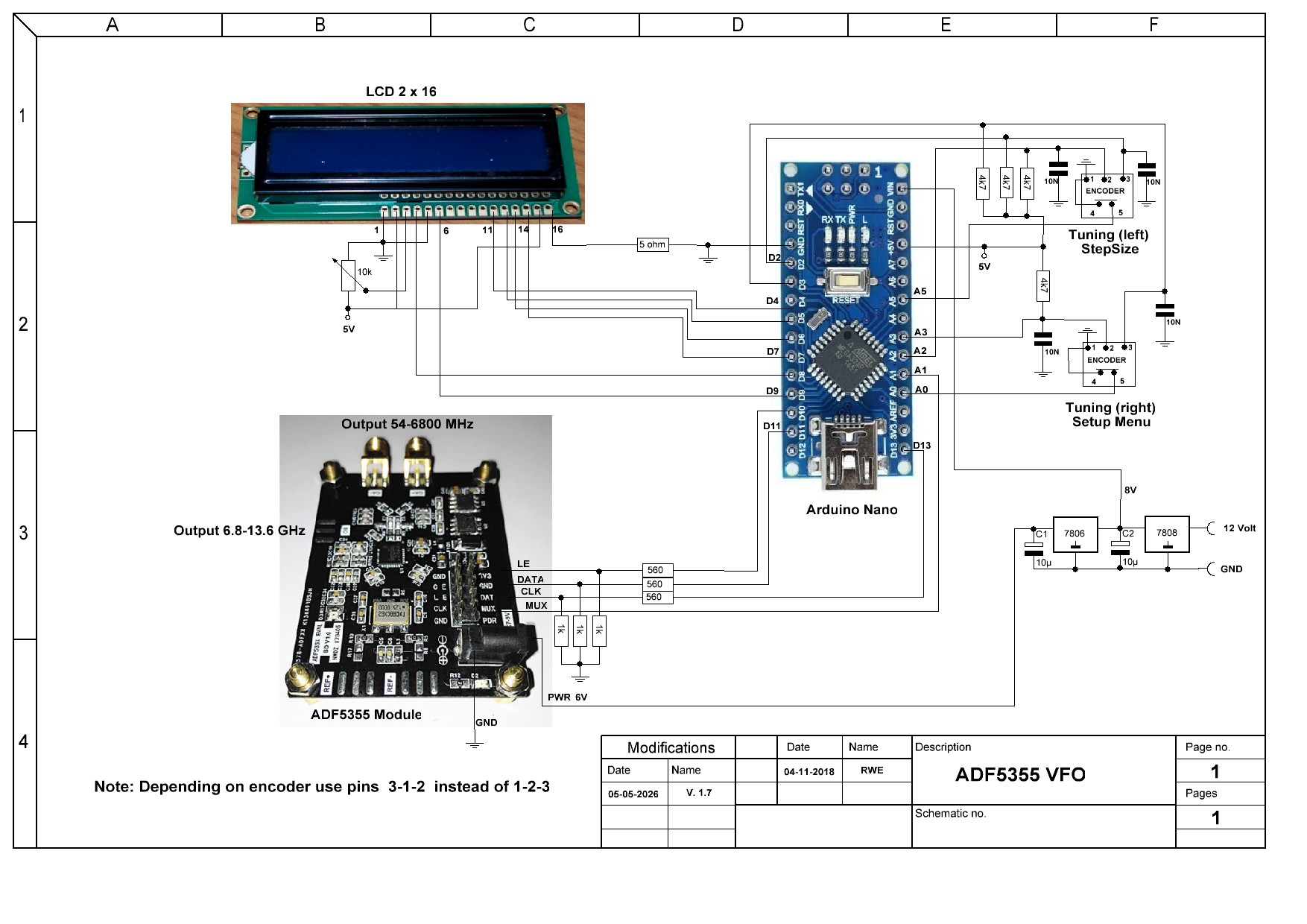

Because the ADF5355 is using 3.3Volt I/O you have to pull-down the output of the Arduino Nano 5Volt I/O by voltage dividers (see the schematic).
Programming can be done with the Arduino IDE and the Arduino Nano USB bus.

I have replaced the original X-tal oscillator by a TCXO for a better frequency stability. See: https://www.digikey.nl/product-detail/en/connor-winfield/DV75C-025.0M/CW885CT-ND/5641655

Using an external ref. frequency you have (by using REF+) to remove R10 and put it on location R17.  For using REF- remove R5 and put it on location R8. (They are 0 ohm and according my board).

It’s also a good idea to block the not used RF OUT connection with a 50 ohm SMD resistor.

Caution: The total supply current is (depending on the RF divider and output power) between 160 and 250 mA. For that reason I added an aluminum cool block on the ADF5355 and I added a separate 6V regulator as well (mounted in the middle of the back panel of the enclosure).

Insight view
