The Minitiouner receiver V2.0
https://wiki.batc.org.uk/MiniTiouner_hardware_Version_2
http://www.vivadatv.org/viewforum.php?f=80
Because I liked the concept, I started building the DATV MiniTiouner receiver with PCB’s from the British Amateur Television Club (BATC).
The receiver consists of a (very good) wide band tuner from 140-2400 MHz, including the 2 meters and 13 centimeter band.
The tuner is built together with the other components on a motherboard controlled by USB and the Minitiouner software.
I have added an extra OLED screen on which the settings of the tuner are indicated. This is already prepared in the software.
![Front](https://pa0rwe.nl/wp-content/uploads/2018/09/Minitiouner-2-600x400.jpg)
Front view of the Minitiouner receiver
![MiniTiouner](https://pa0rwe.nl/wp-content/uploads/2018/09/Minitiouner-1-600x400.jpg)
Inside view of the receiver
The results where very good. I received PE1ASH directly on 23 and 13 cm.
![23cm](https://pa0rwe.nl/wp-content/uploads/2018/09/SNAG-001-600x427.jpg)
23cm DATV from PE1ASH
![13cm](https://pa0rwe.nl/wp-content/uploads/2018/09/SNAG-002-600x426.jpg)
13cm DATV from PE1ASH
The Portsdown transmitter
https://wiki.batc.org.uk/The_Portsdown_Transmitter_index#Hardware
After completing the Minitiouner project, I started building the Portsdown DATV transmitter. This was a hard job, especially the modulator PCB with it’s very small IC’s.
Unfortunately, the mode is DVB-S while now more and more hams are going to work with DVB-S2. Maybe I replace in the future the modulator of the Portsdown by a LimeSDR….
![](https://pa0rwe.nl/wp-content/uploads/2019/10/Afb3_DATV_Tx-600x400.jpg)
Prototyping…
![](https://pa0rwe.nl/wp-content/uploads/2019/10/Portsdown-5-600x400.jpg)

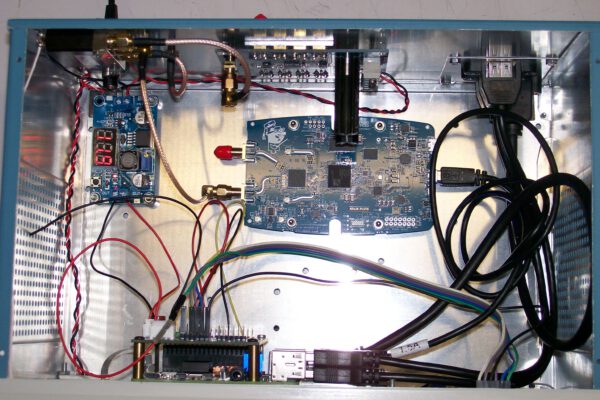

Inside the enclosure
![](https://pa0rwe.nl/wp-content/uploads/2019/10/case-2-600x400.jpg)

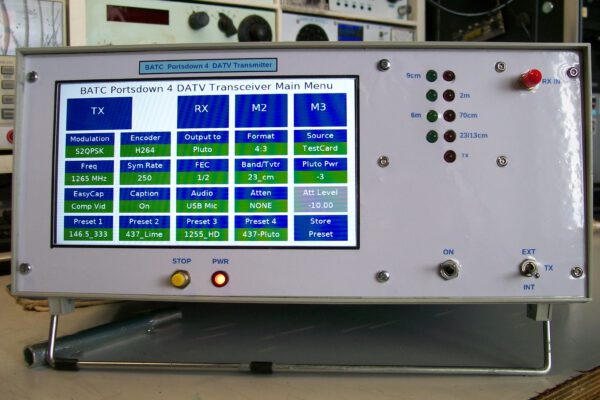

Front view
![](https://pa0rwe.nl/wp-content/uploads/2019/10/case-3-600x400.jpg)
And transmitting….
This page is still under construction….
